Overview - Impact Member

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Depending on the model there are only optical differences. Different version, allocation. Refer to Parts information.

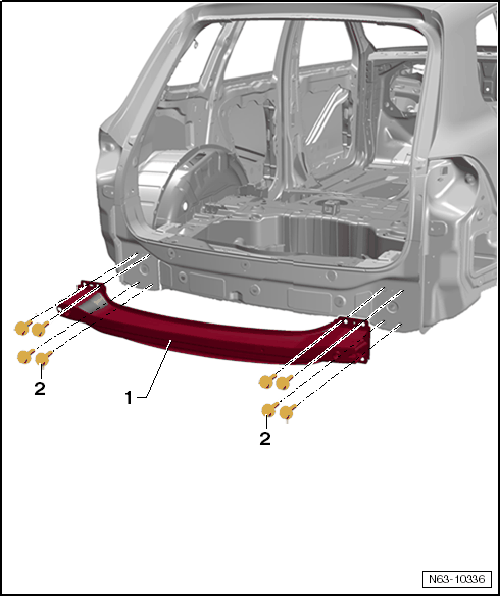

Fig 1: Identifying Rear Bumper Carrier
GWWN63-10336Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Rear Bumper Carrier
    • There are different models. Refer to the Parts information for the allocation.
  2. Bolts
    • 80 Nm
    • Quantity: 4 on each side
