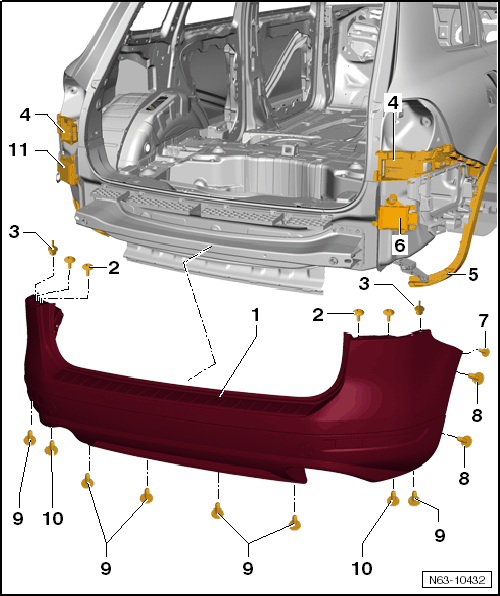

Overview - Bumper Cover
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
This applies to all models.
Due to model variations, small deviations must be considered during removal and installation.
- Rear Bumper Cover
- PP/EPDM material
Depending on the model there are only optical differences. Different version, allocation. Refer to Parts information.
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- PP/EPDM material
- Bolts
- 3 Nm
- Quantity: 2 on each side
- Under the tail lamps
- Clip
- Quantity: 1 on each side
- Under the tail lamps
- Side Guide
- Left and right
- Wheel Cover
- Is locked and bolted to the bumper cover
- Lane Change Assistance Control Module 2 -J770- (Side Assist)
- Right
- Information regarding the lane change assistance. Refer to LANE ASSIST .
- Bolts
- 3 Nm
- Quantity: 1 on each side
- Bolted to the lateral guide
- Bolts
- 3 Nm
- Quantity: 2 on each side
- Attached to the wheel housing liner
- Bolts
- 3 Nm
- Quantity: 6
- Bolted to the brackets
- Bolts
- 3 Nm
- Quantity: 1 on each side
- Bolted to the wheel covers
- Lane Change Assistance Control Module -J769- (Side Assist)
- Left
- Information regarding the lane change assistance. Refer to LANE ASSIST .
