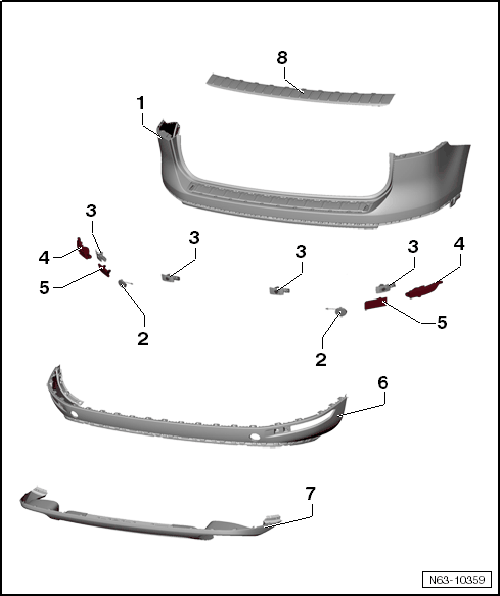

Overview - Attachments Through 09/2014
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Due to model variations, small deviations must be considered during removal and installation.
- Rear Bumper Cover
- PP/EPDM material
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Towing Eye Cap
- Engaged in the rear bumper cover -1-.
- Parking Aid Sensors
- Information regarding the parking aid. Refer to PARKING AID .
- Rear Fog Lamp
- Left and right
- To be removed only with bumper cover removed
- Information regarding the fog lamps. Refer to FOG LAMP .
- Rear Reflector
- Left and right
- Locked to bumper cover
- To be removed only with bumper cover removed
- Cover
- Locked to bumper cover
- To be removed only with bumper cover removed
- Spoiler
- PC/ABS material
- Locked to bumper cover
- To be removed only with bumper cover removed
- Cover Strip
- Locked to bumper cover
- To be removed only with bumper cover removed
