NOTE:
Due to model variations, small deviations must be considered during removal and installation.

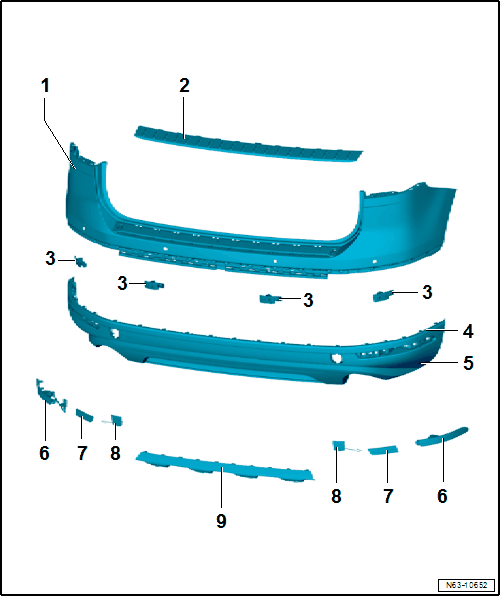

- Rear Bumper Cover
- PP/EPDM material
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Cover Strip
- Locked to bumper cover
- To be removed only with bumper cover removed
- Parking Aid Sensors
- Information regarding the parking aid. Refer to PARKING AID .
- Trim Strip
- 3-part
- Locked to bumper cover
- To be removed only with bumper cover removed
- Cover
- Locked to bumper cover
- To be removed only with bumper cover removed
- Rear Fog Lamp
- Left and right
- To be removed only with bumper cover removed
- Information regarding the fog lamps. Refer to FOG LAMP .
- Rear Reflector
- Left and right
- Locked to bumper cover
- To be removed only with bumper cover removed
- Towing Eye Cap
- Engaged in the rear bumper cover -1-.
- Spoiler
- PC/ABS material
- Locked to bumper cover
- To be removed only with bumper cover removed
