Bumper Cover, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

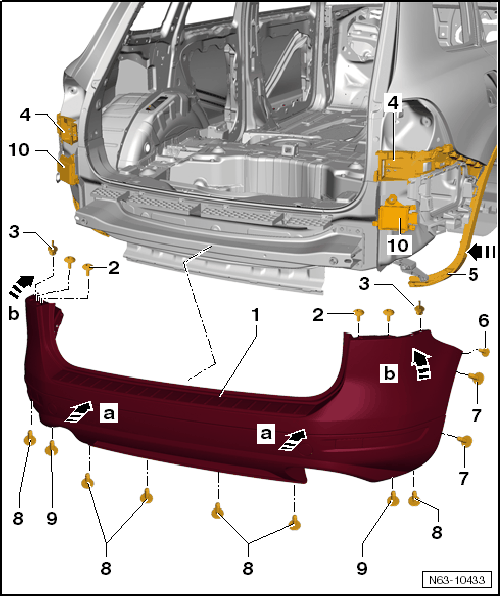

Fig 1: Identifying Rear Bumper Cover, Removal/Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal. Note the following:

-- Secure the connectors.

-- Install the rear bumper cover -1- together with a second technician in direction of -arrows a-.

NOTE:

Be sure to hold the rear bumper cover parallel when guiding it onto the left and right guide profiles.

-- Press the rear bumper cover -1- onto the left and right guide profiles -4- -arrows b- until they engage audibly.

-- Pay attention to the parallel alignment and the gap dimensions. Refer to appropriate service information.

-- Tighten the bolts -6, 7 and 8-.

-- Engage the wheel cover -5- with the bumper cover -1- in direction of -arrow-.

-- Tighten the bolts -9-.

-- Tighten the bolts -2-.

-- Secure the right and left clip -3-.
