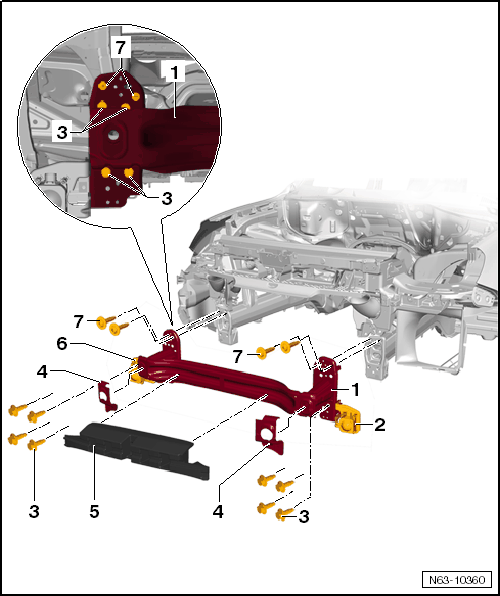

Overview - Impact Member
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Front Bumper Carrier
Depending on the model there are only optical differences. Different version, allocation. Refer to Parts information.
- Distance Regulation Control Module
- Left
- Information regarding the distance regulation control modules. Refer to ADAPTIVE CRUISE CONTROL and ADAPTIVE CRUISE CONTROL .
- Bolts
- 60 Nm
- Quantity 4 for each side
- Bumper Adjusting Piece
- Left and right
- Foam Piece
- Self-adhesive
- Distance Regulation Control Module
- Right
- Information regarding the distance regulation control modules. Refer to ADAPTIVE CRUISE CONTROL and ADAPTIVE CRUISE CONTROL .
- Bolts
- 20 Nm
- Attached to the lock carrier
- Quantity: 2 on each side
