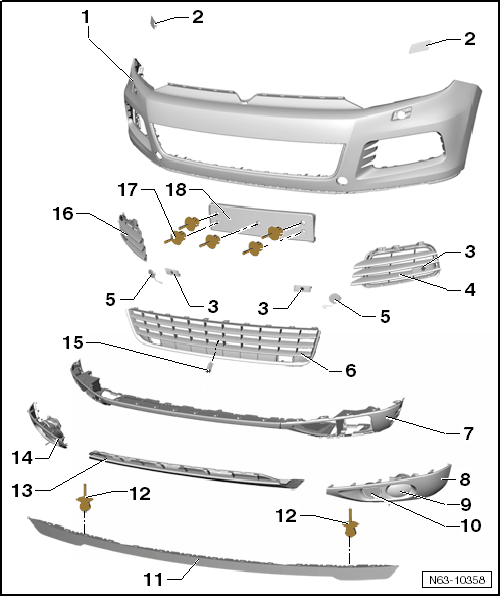

Overview - Attachments Through 09/2014
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
This applies to all models.
Depending on the model there are only optical differences. Different version, allocation. Refer to Parts information.
- Front Bumper Cover
- PP/EPDM material
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Headlamp Washer System Cover
- Left and right
- Information regarding the headlamp washer system. Refer to HEADLAMP WASHER SYSTEM .
- Left Front Parking Aid Sensor -G255-
- Information regarding the parking aid. Refer to PARKING AID .
- Side Air Grille
- Left
- Remove only when bumper cover -1- has been removed
- Towing Eye Cover
- Center Air Grille
- Removing. Refer to CENTER VENT GRILLE, REMOVING AND INSTALLING .
- Spoiler
- Remove only when bumper cover -1- has been removed
- Spoiler Cover
- Left
- Release from the center of the vehicle out of the latching mechanisms in the spoiler using Trim Removal Wedge:3409
- Fog Lamp
- Information regarding the fog lamps. Refer to FOG LAMP .
- Distance Regulation Control Module
- Left and right
- Information regarding the distance regulation control modules. Refer to ADAPTIVE CRUISE CONTROL and ADAPTIVE CRUISE CONTROL (ACC) .
- Spoiler Extension
- Locked to bumper cover
- Clip
- For securing the spoiler extension
- Lower Vent Grille
- Remove only when bumper cover -1- has been removed
- Spoiler Cover
- Left
- Release from the center of the vehicle out of the latching mechanisms in the spoiler using Trim Removal Wedge:3409
- Peripheral Camera
- Information regarding the peripheral camera. Refer to PARKING AID .
- Side Air Grille
- Right
- Remove only when bumper cover -1- has been removed
- With Right Front Parking Aid Sensor -G252- Information and work procedure for parking aid. Refer to PARKING AID .
- Clip
- For attaching the license plate holder -9-
- Different quantity for attaching
- License Plate Holder
- Not installed on all models for all markets.
