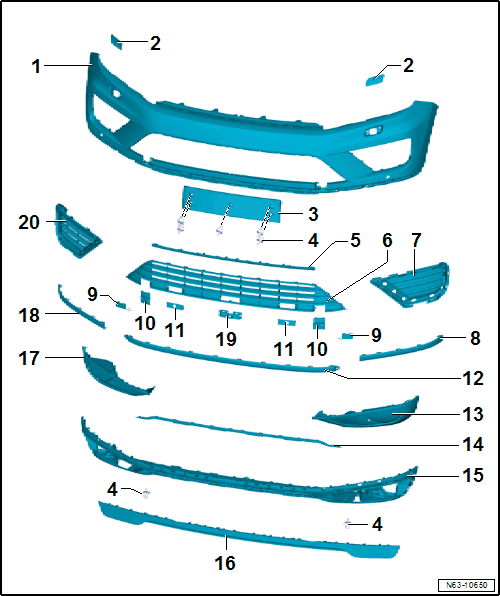

Overview - Attachments From 09/2014
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
This applies to all models.
Depending on the model there are only optical differences. Different version, allocation. Refer to Parts information.
- Front Bumper Cover
- PP/EPDM material
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Headlamp Washer System Cover
- Left and right
- Information regarding the headlamp washer system. Refer to HEADLAMP WASHER SYSTEM .
- License Plate Holder
- Not installed on all models for all markets.
- Clip
- For attaching the license plate holder
- Different quantity for attaching
- Trim Strip
- Air grille component
- Center Air Grille
- To be removed only with front bumper cover removed
- Side Air Grille
- Left
- Remove only when bumper cover has been removed
- Trim Strip
- Remove only when bumper cover has been removed
- Towing Eye Cover
- Cover
- Front Parking Aid Sensor --
- Information regarding the parking aid. Refer to PARKING AID .
- Trim Strip
- Remove only when bumper cover has been removed
- Trim
- Left
- Release from the center of the vehicle out of the latching mechanisms in the spoiler using Trim Removal Wedge:3409
- Intermediate Piece for Spoiler
- Spoiler
- Part of the bumper cover
- The spoiler cannot be removed without damage.
- Spoiler Extension
- Locked to bumper cover
- Trim
- Right
- Release from the center of the vehicle out of the latching mechanisms in the spoiler using Trim Removal Wedge:3409
- Trim Strip
- Remove only when bumper cover has been removed
- Peripheral Camera
- Information regarding the peripheral camera. Refer to PARKING AID .
- Side Air Grille
- Right
- Remove only when bumper cover has been removed
- With Right Front Parking Aid Sensor -G252- Information and work procedure for parking aid. Refer to PARKING AID .
