Overview - Attachments >>R-Line<< Through 09/2014

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Depending on the model there are only optical differences. Different version, allocation. Refer to Parts information.

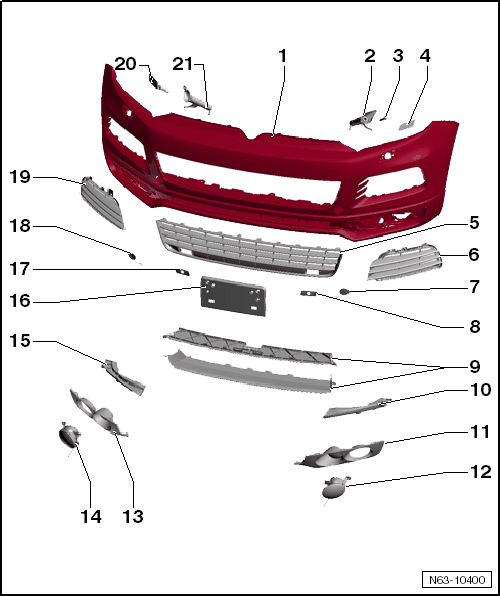

Fig 1: Exploded View Of Front Bumper Cover Attachments R-Line Through 09/2014

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Bumper Cover
- PP/EPDM material
- The spoiler is part of the front bumper cover -1- and cannot be replaced separately.
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Lift Cylinder for the Headlamp Washer System
- Left
- Information regarding the headlamp washer system. Refer to HEADLAMP WASHER SYSTEM .
Nozzle Retainer
- Left and right
Headlamp Washer System Cover
- Left
- Information regarding the headlamp washer system. Refer to HEADLAMP WASHER SYSTEM .
Center Air Grille
- Removing. Refer to CENTER VENT GRILLE, REMOVING AND INSTALLING .
Side Air Grille
- Left
- Remove only when bumper cover -1- has been removed
- Information regarding the parking aid. Refer to PARKING AID .
Towing Eye Cover
- Left
Left Front Center Parking Aid Sensor -G254-
- Information regarding the parking aid. Refer to PARKING AID .
Air Guide
- Top and bottom
- Remove only when bumper cover -1- has been removed
Left Adapter
Spoiler Cover
- Left
- Release from the center of the vehicle out of the latching mechanisms in the spoiler using Trim Removal Wedge:3409
Left Fog Lamp
- Information regarding the fog lamps. Refer to FOG LAMPS .
Spoiler Cover
- Right
- Release from the center of the vehicle out of the latching mechanisms in the spoiler using Trim Removal Wedge:3409
Right Fog Lamp
- Information regarding the fog lamps. Refer to FOG LAMPS .
Right Adapter
License Plate Holder
- Not installed on all models and in all markets. Refer to the Parts information for the allocation.
Right Front Center Parking Aid Sensor -G253-
- Information regarding the parking aid. Refer to PARKING AID .
Towing Eye Cover
- Right
Side Air Grille
- Right
- Remove only when bumper cover -1- has been removed
- Information regarding the parking aid. Refer to PARKING AID .
Headlamp Washer System Cover
- Right
- Information regarding the headlamp washer system. Refer to HEADLAMP WASHER SYSTEM .
Lift Cylinder for the Headlamp Washer System
- Right
- Information regarding the headlamp washer system. Refer to HEADLAMP WASHER SYSTEM .
