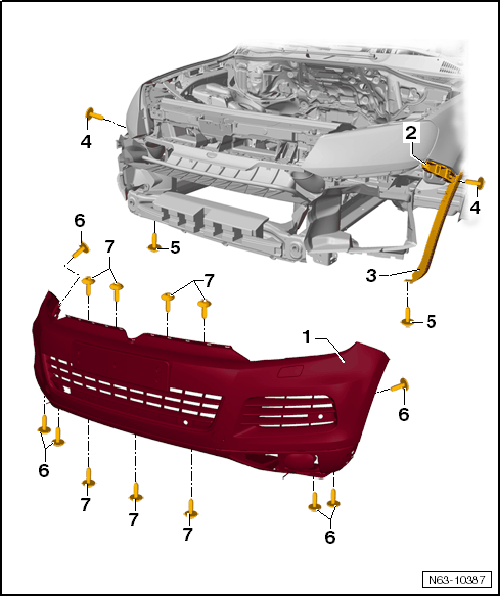

Overview - Attachments >>R-Line<< From 09/2014
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Depending on the model there are only optical differences. Different version, allocation. Refer to Parts information.
- Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Headlamp Washer System Cover
- Left
- Information regarding the headlamp washer system. Refer to HEADLAMP WASHER SYSTEM .
- License Plate Holder
- Not installed on all models for all markets.
- Clip
- For attaching the license plate holder
- Different quantity for attaching
- Side Air Grille
- Left
- To be removed only with front bumper cover removed
- Air Grille
- Center
- To be removed only with front bumper cover removed
- Towing Eye Cover
- Left
- Right Cover Cap
- Information and procedures regarding the parking aid for vehicles with parking aid. Refer to PARKING AID .
- Peripheral Camera Cap
- Information regarding the environmental camera. Refer to PARKING AID .
- Trim Molding
- Left
- To be removed only with front bumper cover removed
- Trim Molding
- Center
- Air grille component
- Spoiler
- Part of the bumper cover
- The spoiler cannot be removed without damage.
- Trim
- Left
- Trim
- Left
- For fog lamp
- Spoiler Trim
- Spoiler Extension
- Locked to bumper cover
- Trim
- Right
- For fog lamp
- Trim
- Right
- Trim Molding
- Right
- To be removed only with front bumper cover removed
- Left Cover Cap
- Information and procedures regarding the parking aid for vehicles with parking aid. Refer to PARKING AID .
- Towing Eye Cover
- Right
- Side Air Grille
- Right
- To be removed only with front bumper cover removed
- Headlamp Washer System Cover
- Right
- Information regarding the headlamp washer system. Refer to HEADLAMP WASHER SYSTEM .
