Bumper Cover, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Information regarding the distance regulation control modules -5-. Refer to ADAPTIVE CRUISE CONTROL and ADAPTIVE CRUISE CONTROL .

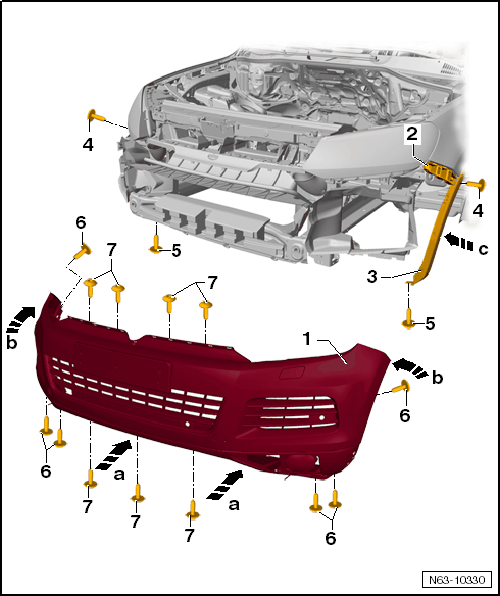

Fig 1: Identifying Front Bumper Cover, Removal/Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal. Note the following:

-- Guide the front bumper cover -1- in a parallel direction -arrows a- onto the lock carrier.

-- Connect all connectors and the hose connection.

-- Press the front bumper cover -1- onto the guides until they engage with one another in direction of -arrows b-.

-- Note the parallel alignment and gap dimensions. Refer to appropriate service information.

-- Engage the wheel cover with the bumper cover -arrow c-.

-- Install and tighten the bolts -4, 5, 6 and 7-.

NOTE:

When installing the front bumper cover, make sure it is guided onto the fender so that it is parallel.
