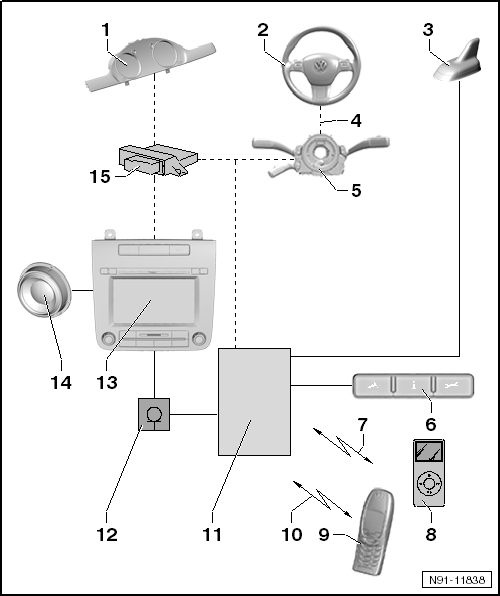

Overview - Telephone System With BLUETOOTH Technology, "Rcd 550" Radio System
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Instrument Cluster Control Module -J285-
- Left Multifunction Buttons on Steering Wheel -E440- and Right Multifunction Buttons on Steering Wheel -E441-
- For more information regarding the multifunction steering wheel. Refer to MULTIFUNCTION STEERING WHEEL .
- Telephone Antenna -R65-
- In the Roof Antenna -RX5-
- CAN Bus Wire Connections
- Steering Column Electronics Control Module -J527-
- In the steering column switch
- Emergency Call Button -E276-
- Removing and installing. Refer to EMERGENCY CALL BUTTON -E276-, REMOVING AND INSTALLING
- Wireless Radio Connection for "A2DP Audio Streaming"
- Multimedia Player
- Not with vehicle delivery
- Cellular Telephone -R54-
- Wireless Radio Connection for "Hands Free Profile"
- Operating Electronics and Telephone Control Module -J412-
- Removing and installing. Refer to CELL PHONE OPERATING ELECTRONICS CONTROL MODULE -J412-, REMOVING AND INSTALLING
- Right Front Microphone -R141- in the Roof Console
- Removing and installing. Refer to INFOTAINMENT MICROPHONE
- Radio -R-
- Refer to "RCD 550" Sound System. Refer to RADIO SYSTEM "RCD 550" .
- Speaker System
- Data Bus On Board Diagnostic Interface -J533-
