Overview - Telephone System With BLUETOOTH Technology, "RNS 850" Radio Navigation System
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The cell phone operating electronics control module is not installed in the "RNS 850".

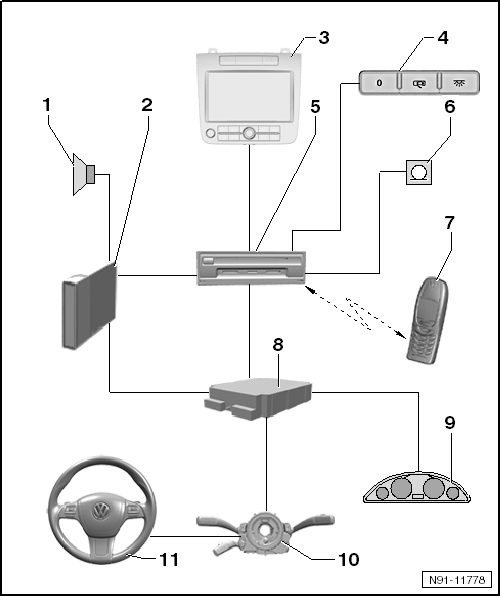

Fig 1: Exploded View Of Elephone System With Bluetooth Technology, "Rns 850" Radio Navigation System
- Speaker System
- Radio -R- or Digital Sound System Control Module -J525-
- Additional information in the radio section. Refer to RADIO .
- Front Information Display Control Head -J685- in center of the instrument panel
- Additional information in the section regarding the front information display control head. Refer to FRONT INFORMATION DISPLAY CONTROL HEAD .
- Emergency Call Button -E276-
- Removing and installing. Refer to EMERGENCY CALL BUTTON -E276-, REMOVING AND INSTALLING
- Information Electronics Control Module 1 -J794-
- With integrated Bluetooth antenna
- Additional information in the section regarding Information Electronics Control Module 1 -J794-. Refer to INFORMATION ELECTRONICS CONTROL MODULE 1 -J794- .
- Right Front Microphone -R141- in the Roof Console
- Removing and installing. Refer to INFOTAINMENT MICROPHONE
- Cellular Telephone -R54-
- Data Bus On Board Diagnostic Interface -J533-
- Instrument Cluster Control Module -J285-
- Steering Column Electronics Control Module -J527-
- In the steering column switch
- Left Multifunction Buttons on Steering Wheel -E440- and Right Multifunction Buttons on Steering Wheel -E441-
- For more information regarding the multifunction steering wheel. Refer to MULTIFUNCTION STEERING WHEEL .
