TV Tuner. Removing And Installing: Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- If the control module is replaced, select the "Replacement" function for the appropriate control module in "Guided Fault Finding".

Connect the Vehicle Diagnostic Tester to do this.

Perform the following steps:

-- Turn off the ignition and all electrical equipment.

-- Remove the DVD Changer. Refer to DVD CHANGER. REMOVING AND INSTALLING .

-- Remove the center luggage compartment floor covering toward the rear.

-- Remove the lock carrier cover. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

-- Remove the tie downs/supports. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

-- If equipped, remove the right luggage compartment floor.

-- Remove the D-pillar trim panel, refer to D-PILLAR TRIM, REMOVING AND INSTALLING .

-- Remove the retaining clip -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the side panel trim on the side window and carefully press in direction of -arrow- slightly to the side.

-- Disconnect the harness connectors from the switches in the side panel trim. If necessary, unclip the interior lamp from the side panel trim.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Only For Vehicles Through MY 2014.

-- Push the retainers outward -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

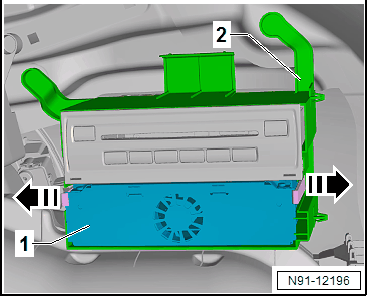

-- At the same time, remove the TV Tuner -1- from the bracket -2-.

-- Release and disconnect the connectors to the TV Tuner -1-.

-- Disconnect the fiber-optic cable from the TV Tuner and attach the Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9 to the disconnected fiber-optic cable connection.

NOTE:

Fiber-optic cable is very delicate!

The fiber-optic cable must not be kinked or significantly bent!

The bending radius must not be less than 25 mm.

A kinked fiber-optic cable is no longer usable, data transfer via kinked fiber-optic cable is faulty!

Please do not remove the protective caps from the ends of the fiber-optic cable until the fiber-optic cable is connected to the intended unit.

Only For Vehicles From MY 2015

-- If installed, release and disconnect all connectors on the Rearview Camera System Control Module -J772-.

-- If installed, release and disconnect all connectors on the Peripheral Camera Control Module -J928-.

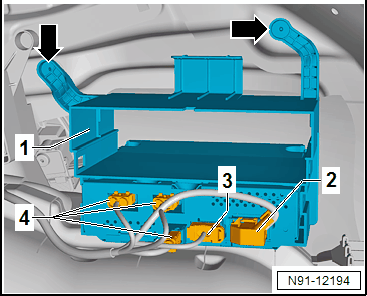

-- Release and disconnect connectors -2- and -4- on the TV Tuner.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the fiber-optic cable -3- from the TV Tuner and attach the Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9 to the disconnected fiber-optic cable connection.

NOTE:

Fiber-optic cable is very delicate!

The fiber-optic cable must not be kinked or significantly bent!

The bending radius must not be less than 25 mm.

A kinked fiber-optic cable is no longer usable, data transfer via kinked fiber-optic cable is faulty!

Please do not remove the protective caps from the ends of the fiber-optic cable until the fiber-optic cable is connected to the intended unit.

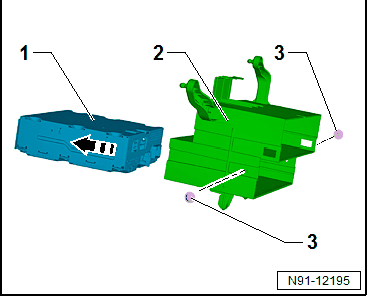

-- Pull out and remove the bracket -1- with TV Tuner from the mounting points -arrows- in the body.

-- Remove the bolts -3- for the TV Tuner -1-.

-- Remove the TV Tuner -1- in direction of -arrow- from the bracket -2-.
