Front Bass Speaker, Removing And Installing: Removing:
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
Perform The Following Steps:
-- Turn off the ignition and all electrical equipment.
-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANELS .

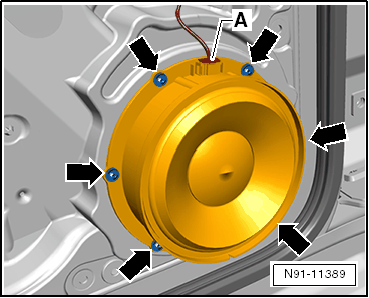

-- Disconnect the harness connector -A- from the speaker.
-- Remove the screws -arrows- from the speaker.
-- Remove the speaker from the door opening.
