Center Mid-Treble Speaker, Removing And Installing: Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Perform The Following Steps:

-- Turn off the ignition and all electrical equipment.

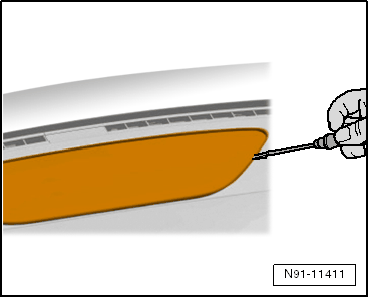

-- Carefully pry out the cover -arrow- with the suitable tool.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

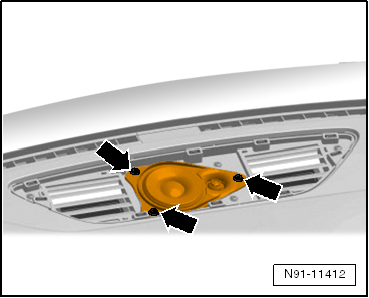

-- Remove the screws -arrows- from the speaker.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the harness connector in the wire connection to the speaker.

-- Remove the speaker from the instrument panel.
