Overview - "RNS 850" Radio Navigation System: Notes
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

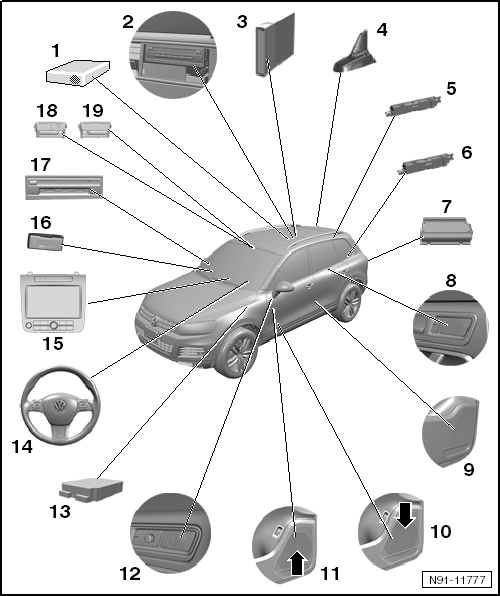

- TV Tuner -R78- /Digital TV Tuner -R171-
- Installed in the luggage compartment behind the right side panel trim
- Removing and installing. Refer to TV TUNER. REMOVING AND INSTALLING
- Connector overview on TV Tuner. Refer to TV TUNER CONNECTOR OVERVIEW .
- Coding: Refer to CODING
- Software update: Refer to SOFTWARE UPDATE
- DVD Changer -R161-
- Installed in the luggage compartment behind the right side panel trim
- Removing and installing. Refer to DVD CHANGER
- DVD Changer Connector Overview. Refer to OVERVIEW - DVD CHANGER HARNESS CONNECTORS
- Coding: Refer to CODING
- Software update: Refer to SOFTWARE UPDATE
- Radio -R-
- Installed in the luggage compartment behind the right side panel trim
- Removing and installing. Refer to RADIO
- Coding: Refer to CODING
- Software update: Refer to SOFTWARE UPDATE
- Roof Antenna -RX5-
- Removing and installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING
- Left Antenna Module -R108- or Right Antenna Module -R109-
- Installed on the upper side windows
- Removing and installing. Refer to ANTENNA MODULE ON UPPER SIDE WINDOWS, REMOVING AND INSTALLING
- Left Antenna Module -R108- or Right Antenna Module -R109-
- Installed on the lower side windows
- Removing and installing. Refer to ANTENNA MODULE ON LOWER SIDE WINDOWS, REMOVING AND INSTALLING
- Digital Sound System Control Module -J525-
- Installed inside the luggage compartment behind the left side trim panel
- Removing and installing. Refer to DIGITAL SOUND SYSTEM CONTROL MODULE, REMOVING AND INSTALLING
- Amplifier Connector Overview. Refer to DIGITAL SOUND SYSTEM CONTROL MODULE -J525-, CONNECTOR OVERVIEW
- Coding: Refer to CODING
- Software update: Refer to SOFTWARE UPDATE
- Left Rear Treble Speaker -R14- or Right Rear Treble Speaker -R16-
- Installed in the door trim
- Removing and installing. Refer to REAR TREBLE SPEAKERS, REMOVING AND INSTALLING
- Left Rear Bass Speaker -R15- or Right Rear Bass Speaker -R17-
- Installed in the door
- Removing and installing. Refer to REAR BASS SPEAKERS, REMOVING AND INSTALLING
- Left Front Bass Speaker -R21- Or Right Front Bass Speaker -R23-
- Installed in the door
- Removing and installing. Refer to FRONT BASS SPEAKER, REMOVING AND INSTALLING
- Left Front Midrange Speaker -R103- or Right Front Midrange Speaker -R104-
- Installed in the door trim
- Removing and installing. Refer to FRONT MIDRANGE SPEAKER, REMOVING AND INSTALLING
- Left Front Treble Speaker -R20- or Right Front Treble Speaker -R22-
- Installed in the door trim
- Removing and installing. Refer to FRONT TREBLE SPEAKER, REMOVING AND INSTALLING
- Data Bus On Board Diagnostic Interface -J533-
- Multifunction Steering Wheel With Right Multifunction Buttons on Steering Wheel -E441- or Left Multifunction Buttons on Steering Wheel -E440-
- For more information. Refer to MULTIFUNCTION STEERING WHEEL
- Front Information Display Control Head -J685-
- Installed in the center of the instrument panel
- Removing and installing. Refer to FRONT INFORMATION DISPLAY CONTROL HEAD
- Coding: Refer to CODING
- Software update: Refer to SOFTWARE UPDATE
- External Audio Source Connection -R199-
- Different component locations in the glove compartment. Refer to COMPONENT LOCATION: EXTERNAL AUDIO SOURCE CONNECTIONR199 IN THE GLOVE COMPARTMENT or in the center console COMPONENT LOCATION: EXTERNAL AUDIO SOURCE CONNECTIONR199 IN THE CENTER CONSOLE .
- Connection in Glove Compartment, Removing and Installing: Refer to EXTERNAL AUDIO SOURCE CONNECTION -R199-, REMOVING AND INSTALLING, CONNECTION IN GLOVE COMPARTMENT
- Connection in the Center Console, Removing and Installing: Refer to EXTERNAL AUDIO SOURCE CONNECTION -R199- REMOVING AND INSTALLING, CONNECTION IN CENTER CONSOLE
- Information Electronics Control Module 1 -J794-
- Installed in the glove compartment
- Removing and installing. Refer to INFORMATION ELECTRONICS CONTROL MODULE 1 -J794-
- Right Front Microphone -R141- or Left Front Microphone -R140- for the Telephone
- Installed in the front roof console
- Interior Microphone -R74- for the Passenger Compartment Noise Compensation in the Digital Sound System Control Module -J525-
