Diagnosis Of Fiber-Optic Cable Breakage: Notes
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

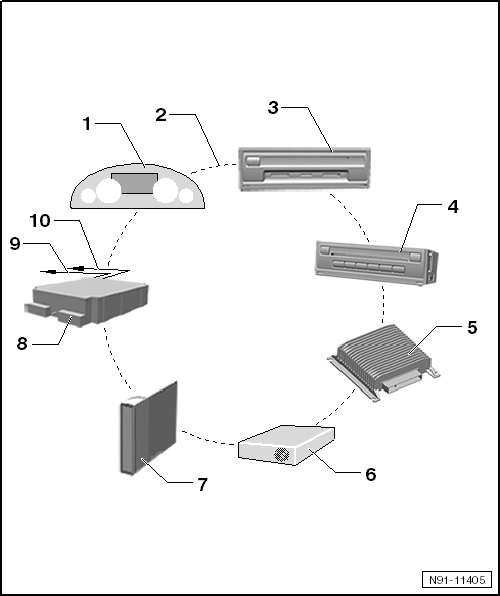

The MOST bus (fiber-optic cable) in the Touareg is responsible for data transmission between the components of the multimedia system. The MOST bus (fiber-optic cable) is connected between the individual devices in a circle, see the image.
NOTE:
Use the Most Repeater:VAS6186 for fault finding.
- Instrument Cluster Control Module -J285-
- MOST Bus, Fiber-Optic Cable
- Information Electronics Control Module 1 -J794-
- DVD Changer -R161-
- Digital Sound System Control Module -J525-
- TV Tuner -R78-
- Radio -R-
- Data Bus On Board Diagnostic Interface -J533-
- CAN Bus Line
- CAN Bus Line
This means that data input and data output for light signals occur at each module.
In every vehicle there is always only one fiber-optic cable, regardless of version.
