Overview - "Rcd 550" Radio System

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

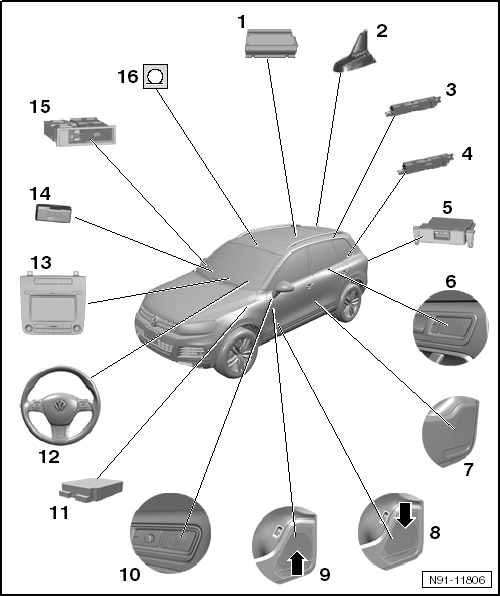

Fig 1: Exploded View Of "Rcd 550" Radio System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Digital Sound System Control Module -J525-
- Installed inside the luggage compartment behind the left side trim panel
- Removing and installing. Refer to DIGITAL SOUND SYSTEM CONTROL MODULE, REMOVING AND INSTALLING
- Coding: Refer to CODING
- Software update: Refer to SOFTWARE UPDATE
- Connector Overview, Amplifier. Refer to DIGITAL SOUND SYSTEM CONTROL MODULE -J525-, CONNECTOR OVERVIEW
Roof Antenna -RX5-
- Optional
- Removing and installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING
Left Antenna Module -R108- or Right Antenna Module -R109-
- Installed on the upper side windows
- Removing and installing. Refer to ANTENNA MODULE ON UPPER SIDE WINDOWS, REMOVING AND INSTALLING
Left Antenna Module -R108- or Right Antenna Module -R109-
- Installed on the lower side windows
- Removing and installing. Refer to ANTENNA MODULE ON LOWER SIDE WINDOWS, REMOVING AND INSTALLING
CAN Bus Infotainment Interface -J885-
- Installed inside the luggage compartment behind the left side trim panel
- Removing and installing. Refer to CAN BUS INFOTAINMENT INTERFACE -J885- .
Left Rear Treble Speaker -R14- or Right Rear Treble Speaker -R16-
- Installed in the door trim
- Removing and installing. Refer to REAR TREBLE SPEAKERS, REMOVING AND INSTALLING
Left Rear Bass Speaker -R15- or Right Rear Bass Speaker -R17-
- Installed in the door
- Removing and installing. Refer to REAR BASS SPEAKERS, REMOVING AND INSTALLING
Left Front Bass Speaker -R21- or Right Front Bass Speaker -R23-
- Installed in the door
- Removing and installing. Refer to FRONT BASS SPEAKER, REMOVING AND INSTALLING
Left Front Midrange Speaker -R103- or Right Front Midrange Speaker -R104-
- Installed in the door trim
- optional
- Removing and installing. Refer to FRONT MIDRANGE SPEAKER, REMOVING AND INSTALLING
Left Front Treble Speaker -R20- or Right Front Treble Speaker -R22-
- Installed in the door trim
- Removing and installing. Refer to FRONT TREBLE SPEAKER, REMOVING AND INSTALLING
Data Bus On Board Diagnostic Interface -J533-
Multifunction steering wheel with Right Multifunction Buttons on Steering Wheel -E441- or Left Multifunction Buttons on Steering Wheel -E440-
- For more information. Refer to MULTIFUNCTION STEERING WHEEL
Radio -R-
- Installed in the center of the instrument panel
- Removing and installing. Refer to "RCD 550" RADIO, REMOVING AND INSTALLING
External Audio Source Connection -R199-
- in the center console storage compartment under the front armrest
- Removing and installing. Refer to EXTERNAL AUDIO SOURCE CONNECTION -R199-, AUX IN JACK, REMOVING AND INSTALLING
External Multimedia Device Interface -R215-
- Installed in the glove compartment
- Removing and installing. Refer to EXTERNAL AUDIO SOURCE CONNECTION -R199-, REMOVING AND INSTALLING
Right Front Microphone -R141- or Left Front Microphone -R140- for the Telephone
- Installed in the front roof console
