"Rcd 550", System Overview

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

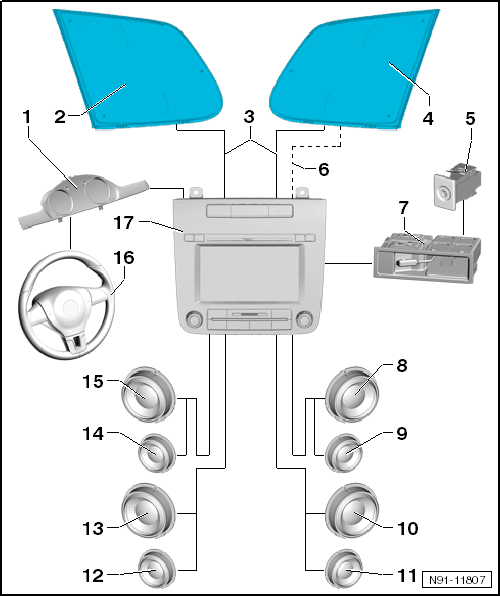

Fig 1: Exploded View Of "RCD 550"
GWWN91-11807Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Instrument Cluster Control Module -J285-
  2. Left Rear Side Window With Antenna Modules
  3. Antenna Wire Connections for AM/FM and FM2
  4. Right Rear Side Windows with Antenna Modules
  5. External Audio Source Connection -R199-
  6. DAB (Digital Audio Broadcasting) Antenna Wire Connections
  7. External Multimedia Device Interface -R215-
  8. Right Front Bass Speaker -R23-
  9. Right Front Treble Speaker -R22-
  10. Right Rear Bass Speaker -R17-
  11. Right Rear Treble Speaker -R16-
  12. Left Rear Treble Speaker -R14-
  13. Left Rear Bass Speaker -R15-
  14. Left Front Treble Speaker -R20-
  15. Left Front Bass Speaker -R21-
  16. Multifunction Steering Wheel with Right Multifunction Buttons on Steering Wheel -E441- or Left Multifunction Buttons on Steering Wheel -E440-
  17. Radio -R-
