Connectors 5-8, Antenna Connectors

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

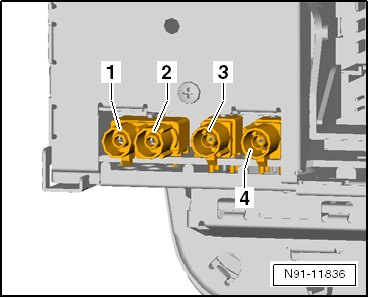

GWWN91-11836Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1  - AM/FM radio reception antenna connector

2  - FM2 radio reception antenna connector

3  - DAB (Digital Audio Broadcasting) digital radio reception antenna connector

4  - rearview camera (RVC) video signal
