Emergency Call Button -E276-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the Front Interior Lamp -WX1-. Refer to appropriate service information. .

-- Remove the headliner compartment. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

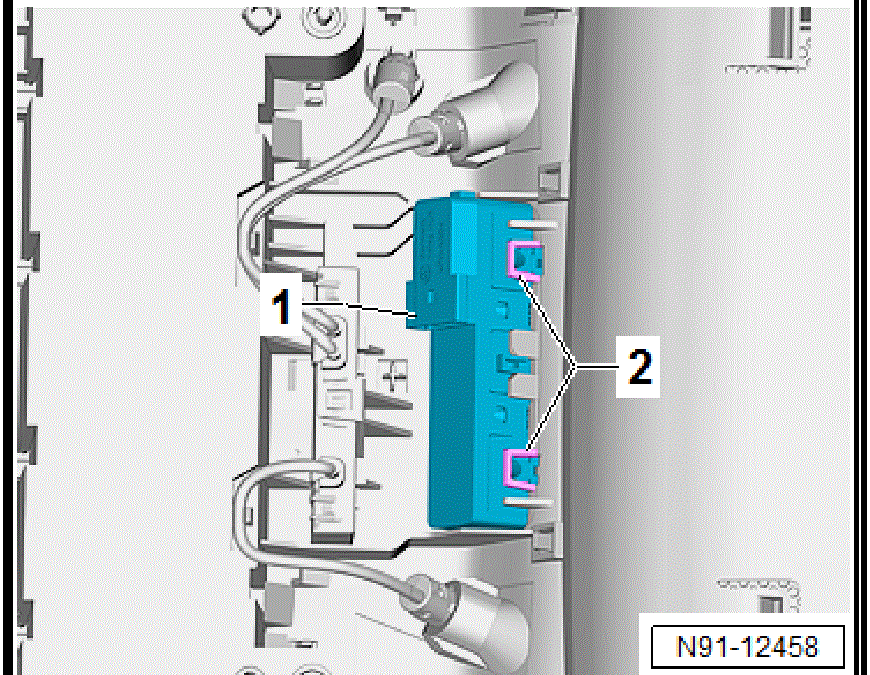

-- Carefully release the mounting tabs -2- on both sides on the headliner compartment using a small screwdriver.

G00591846Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- At the same time remove the Emergency Call Button -E276- -1- upward from the headliner compartment.
