MULTIFUNCTION Button In The Steering Wheel, Removing And Installing: Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Perform The Following Steps:

-- Turn off the ignition and all electrical equipment.

-- Remove the driver airbag unit. Refer to AIRBAG .

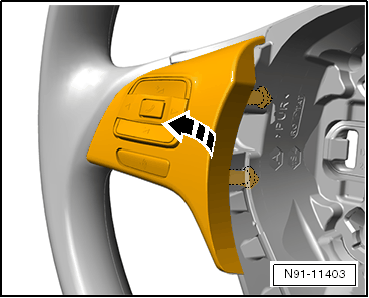

-- Use the Trim Removal Wedge:3409  to carefully pry out the multifunction button in the direction of -arrow-.

GWWN91-11403Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
