DVD Changer. Removing And Installing: Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Perform the Following Steps:

-- Turn off the ignition and all electrical equipment.

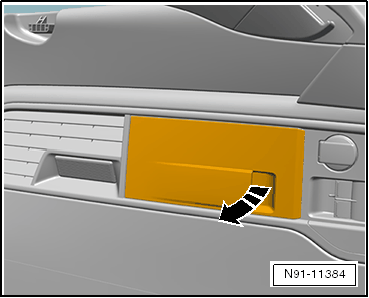

-- Open the lid in the luggage compartment in the right side panel trim in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

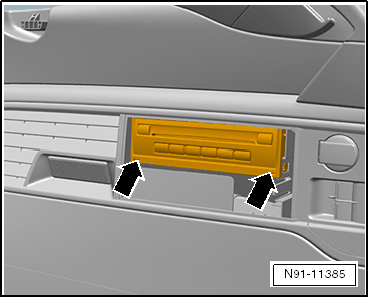

-- Insert the Radio Removal Tools:T10057 into the release slots -arrows- until they engage.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

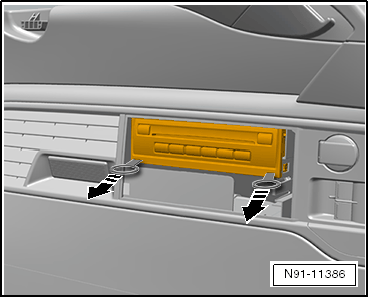

-- Pull the DVD changer via the gripping rings of the release tools in the direction of -arrow- out of the installation frame.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the harness connectors from the DVD changer.

-- Disconnect the fiber-optic cable from the DVD changer and attach the Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9 to the disconnected fiber-optic cable connection.

NOTE:

Fiber-optic cable is very delicate!

The fiber-optic cable must not be kinked or significantly bent!

The bending radius must not be less than 25 mm.

A kinked fiber-optic cable is no longer usable, data transfer via kinked fiber-optic cable is faulty!

Please do not remove the protective caps from the ends of the fiber-optic cable until the fiber-optic cable is connected to the intended unit.
