Can Bus Infotainment Interface, Removing And Installing: Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

The CAN Bus Infotainment Interface -J885- is installed only with the "RCD 550".

-- If the control module is replaced, select the "Replacement" function for the appropriate control module in "Guided Fault Finding".

Connect the Vehicle Diagnostic Tester to do this.

Perform the Following Steps:

-- Turn off the ignition and all electrical equipment.

-- Remove the left side trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

Vehicles with Rear Heater and A/C Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the noise insulation foam piece -1-.

-- Remove the bolts -arrows- from the heater and A/C Unit.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the heater and A/C Unit in direction of -arrow-. The wire connections and hoses remain connected.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continued for All Vehicles

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

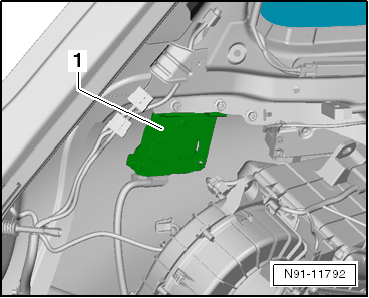

-- Remove both screws from the bracket on the CAN bus Infotainment interface -1-.

-- Remove the CAN bus Infotainment interface

-- Disconnect the connectors.
