Overview - Antenna Modules

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

The antenna modules are installed on the rear windows on the top and bottom. The technical version is adapted to the vehicle equipment.

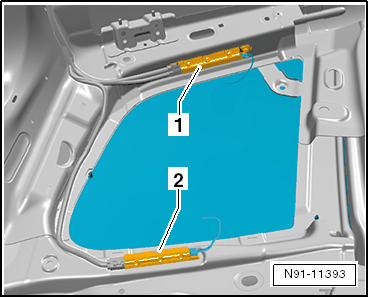

GWWN91-11393Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Antenna module on the upper rear side window
  2. Antenna module on the lower rear side window
