Roof Antenna, Removing And Installing: Installing:
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When inserting the roof antenna, ensure that the seal is properly seated. Both guide protrusions of the seal must be seated in the appropriate holes -arrows- in antenna base.

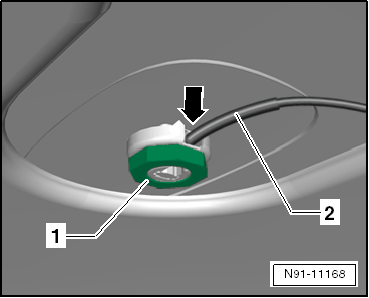

After inserting the roof antenna, ensure that the antenna cable -2- is correctly routed through the opening -arrow- in the retaining nut.
Depending on the antenna version, several wire connections are possible.
Remaining installation in reverse order of removal.
