Overview - Antenna System, "Rcd 550" Radio System
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

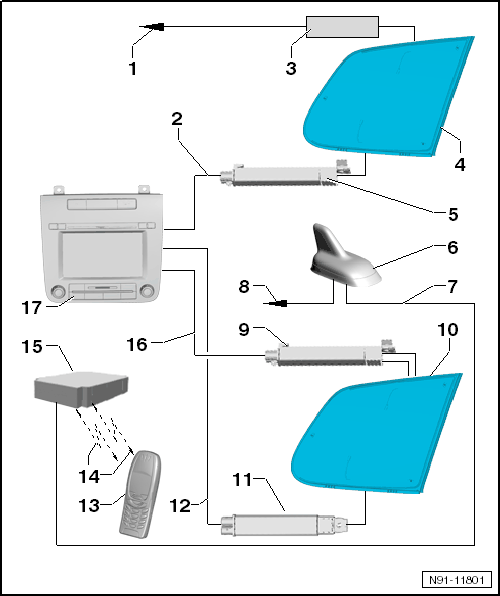

- Antenna Cable to the Receiver for Radio Remote Control Central Locking
- Antenna Wire to the Radio for Receiving FM Diversity
- Right Antenna Module -R109-
- Installed on the upper right side window
- For FM2 reception
- Right Rear Side Window
- Right Antenna Module -R109-
- Installed on the lower right side window
- For the central locking remote control
- Roof Antenna -RX5-
- Antenna Wire to the Cell Phone Operating Electronics Control Module -J412-
- Antenna Wire to Remote Control Parking Heater Control Module
- Left Antenna Module -R108-
- Installed on the upper left side window
- For AM/FM1-reception
- Left Rear Side Window
- Left Antenna Module -R108-
- Installed on the lower left side window
- For digital radio reception DAB
- Antenna Wire to the RCD 550 for Antenna Signal Digital Radio Reception DAB
- Cellular Telephone -R54-
- Wireless Data Transfer for Telephone-Audio/Speed in "Hands Free Profile" HFP
- Operating Electronics and Telephone Control Module -J412-
- Antenna Wire to the Radio for Receiving FM Diversity
- Radio -R-
