Installing Seal

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Seal, Sleeve T10122/1 And Assembly Tool T10122/2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the seal -A- with the outer side over the : T10122/1 for the : T10122 onto the : T10122/2 .

-- Separate both assembly sleeves.

-- Then place the : T10122/2 with the dry seal on the crankshaft journal.

-- Drive the seal all the way into the sealing flange using the : T10122/3 .

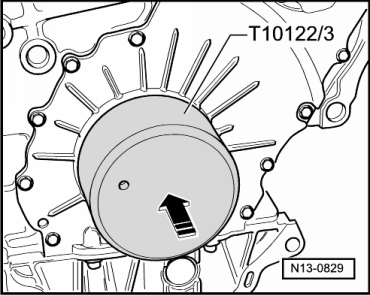

Fig 2: Driving Seal Into Sealing Flange Until Stop Using Pressure Sleeve T10122/3

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Assemble in reverse order of disassembly.
