Drive Plate, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Install the drive plate on crankshaft.

-- Install at least 3 of the old bolts and tighten them to 30 Nm.

-- Measure dimension -a- using a : VAS6594 : target value: 21 to 23 mm.

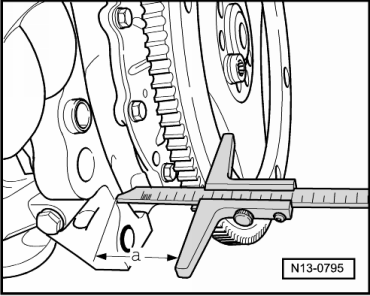

Fig 1: Measuring Dimension Using Depth Gauge

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

If specified value is not reached:

-- Remove drive plate again and use appropriate shim -1-.

Fig 2: Identifying Appropriate Shim

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Only one shim of the appropriate thickness may be used.

If specified value is obtained:

-- Install the new bolts and tighten them hand-tight.

-- Further tighten the retaining bolt with 60 Nm + 90° turn.
