Auxiliary Components Bracket, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

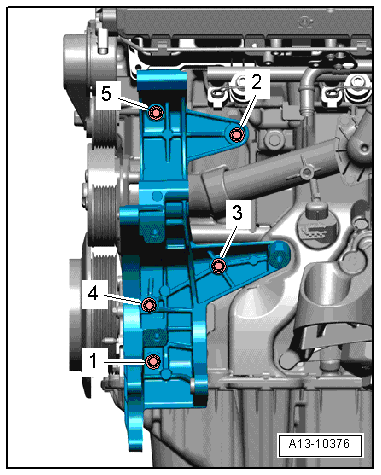

Fig 1: Accessory Bracket Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal. Note The Following:

-- Tighten bolts in 2 stages in -1 to 5- sequence as follows:

-- Tighten bolts by hand.-- Tighten the bolts to 25 Nm.

NOTE:

Bolts -1 and 2- are fitting bolts.

-- Install the A/C compressor. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .

-- Install the power-steering pump. Refer to POWER STEERING PUMP, REMOVING AND INSTALLING .

-- Install the generator. Refer to GENERATOR .

-- Install the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .
