Cylinder Bore, Checking

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Cylinder Dial Bore Gauge: VAS6078

Test Sequence

Measure diagonally at three positions transversely -A- and longitudinally -B-.

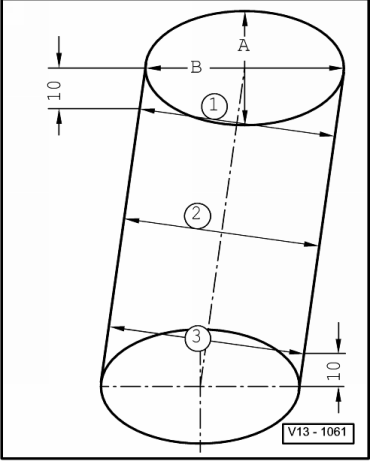

Fig 1: Checking Cylinder Bore
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Maximum difference from specified size: 0.08 mm

NOTE:

Cylinder bore must not be measured if cylinder block is secured to assembly stand or else results may be incorrect.
