Part I: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

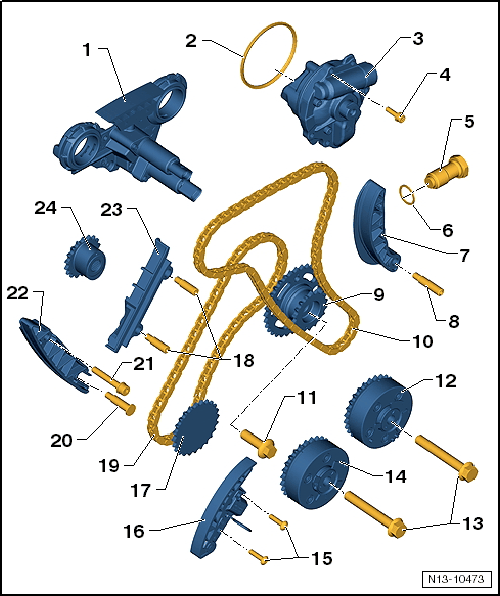

Fig 1: Exploded View Of Timing Chain With Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Control Housing
- Oil contact surface of sealing rings before installing
- Removing and installing. Refer to CAMSHAFT, REMOVING AND INSTALLING
- Overview. Refer to OVERVIEW - CONTROL HOUSING .
- Check the control housing strainer for soiling before installing. Refer to OVERVIEW - CONTROL HOUSING .
Seal
- Always replace
Oil Pump
- Removing and installing. Refer to OIL PUMP, REMOVING AND INSTALLING .
Bolt
- 8 Nm
- Insert with Locking Fluid: D 000 600 A2
Chain Tensioner
- 50 Nm
- For the camshaft timing chain -item ) PART I - CAMSHAFT TIMING CHAIN
- Only rotate the engine with chain tensioner installed
Seal
- Replace if damaged or leaking
Tensioning Rail
- For the camshaft timing chain -item ) PART I - CAMSHAFT TIMING CHAIN
Mounting Pin
- 10 Nm
- For tensioning track -item ) PART I - TENSIONING RAIL
Chain Sprocket
- For the timing chains
- Camshaft adjuster with camshaft timing chain, installing. Refer to CAMSHAFT ADJUSTER, REMOVING AND INSTALLING .
Camshaft Timing Chain

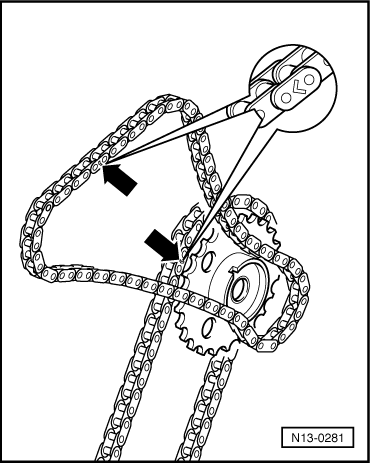

- Mark direction of rotation before removing (installation position). Refer to Figure
- Camshaft adjuster with camshaft timing chain, installing. Refer to CAMSHAFT ADJUSTER, REMOVING AND INSTALLING .
Bolt
- 60 Nm + ¹ /₄ (90°) turn
- Always replace
Exhaust Camshaft Adjuster
- Identification: 32A
- Camshaft adjuster with camshaft timing chain, installing. Refer to CAMSHAFT ADJUSTER, REMOVING AND INSTALLING .
Bolt
- 60 Nm + ¹ /₄ (90°) Additional Turn
- Always replace
- Contact surface of sensor wheel at bolt head must be dry when installing
- Counterhold the camshaft with a 27 mm wrench when removing and installing. Refer to CAMSHAFT, REMOVING AND INSTALLING
Intake Camshaft Adjuster
- Identification: 24e
- Camshaft adjuster with camshaft timing chain, installing. Refer to CAMSHAFT ADJUSTER, REMOVING AND INSTALLING .
Bolt
- 10 Nm
Chain Tensioner with Tensioning Rail
- For the timing chain -item ) PART I - TIMING CHAIN.
- Only rotate the engine with chain tensioner installed
Drive Pinion
- Integrated in the crankshaft
- Ground down tooth faces bearing joint = TDC cylinder 1. For installing the oil pump drive timing chain. Refer to TIMING CHAIN FOR THE OIL PUMP DRIVE, REMOVING AND INSTALLING .
Pin without Collar
- 10 Nm
- For Glide track -item ) PART I - GUIDE RAIL
Timing Chain
- Mark direction of rotation before removing (installation position). Refer to Figure
- Install the timing chain for the oil pump drive. Refer to TIMING CHAIN FOR THE OIL PUMP DRIVE, REMOVING AND INSTALLING .
Mounting Pin
- 10 Nm
- For Guide rail
Bolt
- 23 Nm
Guide Rail
- For the camshaft timing chain -item ) PART I - CAMSHAFT TIMING CHAIN
Guide Rail
- For the timing chain -item ) PART I - TIMING CHAIN
- Together with the timing chain, removing and installing. Install the timing chain for the oil pump drive. Refer to TIMING CHAIN FOR THE OIL PUMP DRIVE, REMOVING AND INSTALLING .
High Pressure Pump Drive Chain Sprocket
- With needle bearing
- Coat the needle bearing with oil before installing
