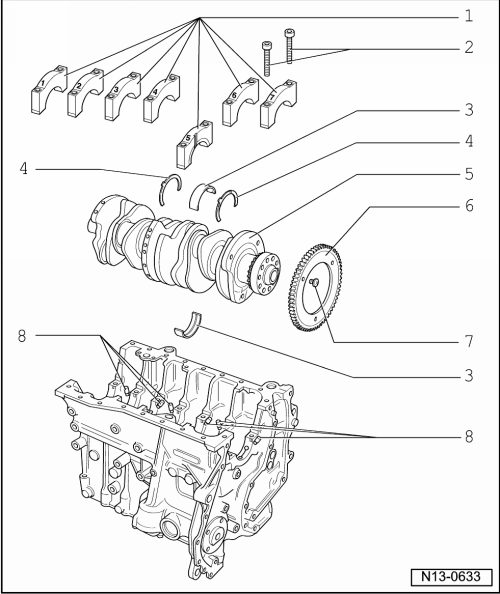

Overview - Crankshaft
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Bearing Cap
- Bearing cap 1: vibration damper side
- Bearing cap 5 with notches for thrust washers
- Retaining tabs of bearing shells and cylinder block/bearing caps must lie above one another
- Bolt
- 30 Nm + 1 /2 (180°) turn
- 2 x 90° further turns is permitted
- Always replace
- Bearing Shell 1 through 7
- For bearing cap without oil groove
- For cylinder block with oil groove
- Do not interchange used bearing shells (mark)
- Crankshaft bearing shells, allocating. Refer to MAIN BEARING SHELLS ALLOCATION .
- Thrust Washer
- For bearing cap 5
- Pay attention to the locating point
- Crankshaft
- If replacing the crankshaft, allocate the crankshaft bearing shells. Refer to MAIN BEARING SHELLS ALLOCATION
- Read information before removing. Refer to CRANKSHAFT .
- Axial play new: 0.07 to 0.23 mm, wear limit: 0.30 mm
- Check the radial clearance with Plastigauge® , new: 0.02 to 0.06 mm, wear limit: 0.10 mm
- Do not turn crankshaft when measuring radial play
- Crankshaft dimensions: crankshaft bearing: 59.958 to 59.978 mm; connecting rod bearing: 53.958 to 53.978 mm
- It is not permissible to rework the crankshaft.
- Sensor Wheel
- Always replace
- For Engine Speed Sensor -G28-
- Installing. Refer to SENSOR WHEEL ON CRANKSHAFT, INSTALLING .
- Bolt
- 10 Nm + 1 /4 (90°) turn
- Always replace
- Oil Spray Jet
- For crankshaft bearings 2 through 7
- For piston cooling
- Opening pressure: 2.0 bar (29 psi)
- Removing and installing. Refer to OIL SPRAY NOZZLE, REMOVING AND INSTALLING .
