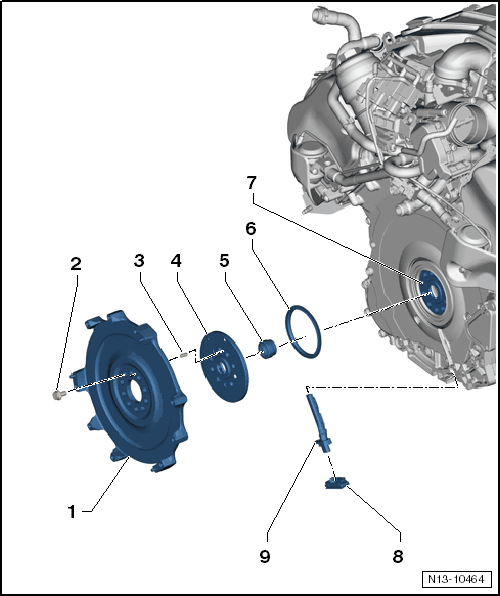

Overview - Drive Plate
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Drive Plate
- Installation is only possible in one position because of the offset holes
- Removing and installing. Refer to DRIVE PLATE, REMOVING AND INSTALLING .
- Bolt
- 60 Nm + 90° additional turn
- Replace
- Alignment Pin
- Sensor Wheel
- Sensor wheel, removing and installing. Refer to SENSOR WHEEL, REMOVING AND INSTALLING .
- For Engine Speed Sensor -G28-
- Engine Speed Sensor -G28-, removing and installing. Refer to Engine Speed Sensor -G28-, REMOVING AND INSTALLING
.NOTE:
There is a risk of destroying the sensor wheel by magnetic force.
Do not place the sensor wheel near magnets (for example inspection lamp base, or speakers).
If the drive plate or the sensor wheel disjoints itself or was replaced, the sensor wheel function must be checked before installing. Refer to SENSOR WHEEL, CHECKING .
- Needle Bearing
Removing and installing. Refer to CRANKSHAFT NEEDLE BEARING, REMOVING AND INSTALLING .
- Shaft Seal
- For the crankshaft on the transmission side
- Replacing. Refer to CRANKSHAFT SEAL, REPLACING, TRANSMISSION SIDE .
- Crankshaft
- Rubber Plug
- Engine Speed Sensor -G28-
- Removing and installing. Refer to Engine Speed Sensor -G28-, REMOVING AND INSTALLING .
