Drive Plate, Removing And Installing: Removing:
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Engine with transmission removed and electro-drive drive motor removed from the engine. Refer to ENGINE, REMOVING AND INSTALLING .
-- Remove the clutch. Refer to CLUTCH, REMOVING AND INSTALLING [For transmission(s) 0C8] .

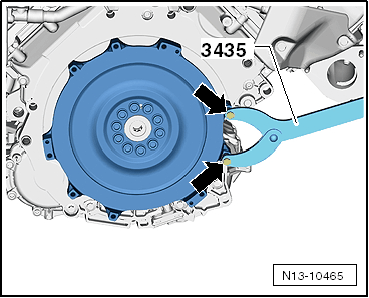

-- Attach the Counterhold - Pulley:3435 to the drive plate using two M8x20 bolts -arrows-.
NOTE:
Risk of destroying the sensor wheel for the Engine Speed Sensor -G28- by magnetic force.
Do not place the sensor wheel near magnets (for example inspection lamp base, or speakers).
-- Remove the drive plate bolts and the drive plate.
