Ribbed Belt, Removing And Installing: Removing:
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the supercharger ribbed belt. Refer to SUPERCHARGER RIBBED BELT, REMOVING AND INSTALLING .
CAUTION:
Risk of damage due to reversed running direction on a used ribbed belt.
- For installing the ribbed belt again, mark the running direction with chalk or a felt tip pen.

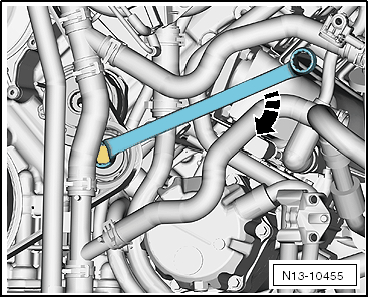

-- Pivot the tensioner clockwise in direction of -arrow- to release the tension on the ribbed belt.
-- Remove the ribbed belt and release the tension on the tensioner.
