Ribbed Belt, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal while noting the following:

-- Place the ribbed belt over the pulley as illustrated.

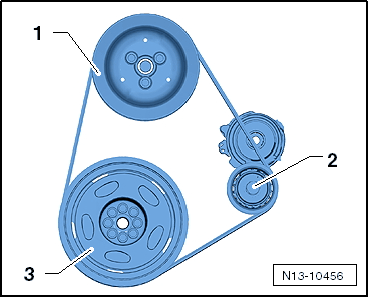

Fig 1: Identifying Belt Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Coolant Pump
Ribbed Belt Tensioner
Vibration Damper

NOTE:

When installing the ribbed belt, ensure it is seated correctly on the ribbed belt pulleys.

-- Install the supercharger ribbed belt. Refer to SUPERCHARGER RIBBED BELT, REMOVING AND INSTALLING .

-- Start the engine and check the ribbed belt routing.
