Overview - Ribbed Belt Drive

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

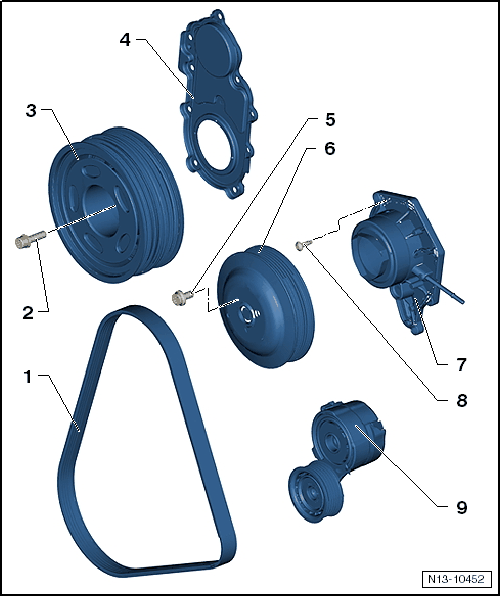

Fig 1: Exploded View Of Accessory Drive Belt With Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Ribbed Belt
- Check for wear
- Before removing, mark direction of rotation using chalk or felt-tip marker
- Removing and installing. Refer to RIBBED BELT, REMOVING AND INSTALLING .
- Do not kink
- When installing, make sure it is seated correctly on the ribbed belt pulleys
Bolt
- 20 Nm + 90° additional turn
- Replace
Vibration Damper
- With dual ribbed belt pulley
- Removing and installing. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .
Sealing Flange, Belt Pulley Side
- Replace. Refer to SEALING FLANGE, REMOVING AND INSTALLING, BELT PULLEY SIDE .
Bolt
- Tightening specification -item 2) OVERVIEW - COOLANT PUMP/THERMOSTAT .
Coolant Pump Ribbed Belt Pulley
- Removing and installing. Refer to COOLANT PUMP, REMOVING AND INSTALLING .
Coolant Pump
- Removing and installing. Refer to COOLANT PUMP, REMOVING AND INSTALLING .
Bolt
- Tightening specification -item 1) OVERVIEW - COOLANT PUMP/THERMOSTAT .
Ribbed Belt Tensioner
- Tighten the bolt to 40 Nm.
- Removing and installing. Refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING .
