Test Sequence

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Connect the Dial Gauge - 0-10mm:VAS6079  with :VW382/7  and :VW385/17  .

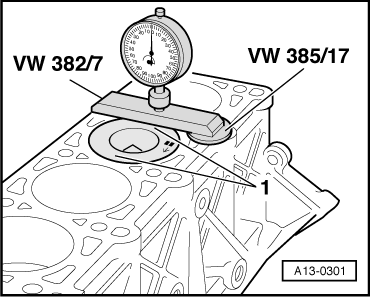

Fig 1: Identifying VW 382/7 And Measuring Bar VW 385/17
GWWA13-0301Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Measure the projection of each piston at two points -1-.

Piston Projection Above the Cylinder Block Upper Edge Identification Holes
0.39 to 0.49 mm 1
0.49 to 0.54 mm 2
0.54 to 0.65 mm 3
