Bracket For Generator And Idler Roller - Tightening Specifications And Tightening Sequence

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

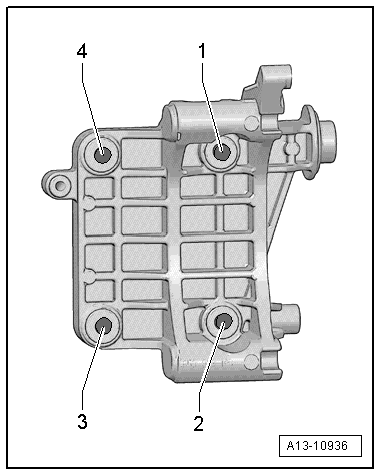

Fig 1: Generator Bracket Bolt Tightening Sequence and Specification
GWWA13-10936Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts in the sequence -1 to 4-.

-- Tighten the bolts to 40 Nm in the sequence -1 to 4-.
