Lower Timing Chain Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The procedure is based on the removal and installation of the timing chain cover. The cover for

-- Drain the engine oil.

-- Remove the engine. Refer to ENGINE, REMOVING .

-- Separate engine/transmission unit. Refer to REMOVING ENGINE FROM Scissor Lift Table .

-- Secure engine to assembly stand. Refer to ENGINE, SECURING ON ASSEMBLY STAND .

-- Remove the drive plate. Refer to DRIVE PLATE, REMOVING AND INSTALLING .

-- Remove the shim behind it.

-- Remove the charge air pipe with the crankcase ventilation connecting hose.

-- Disconnect the connectors -1 and 2-.

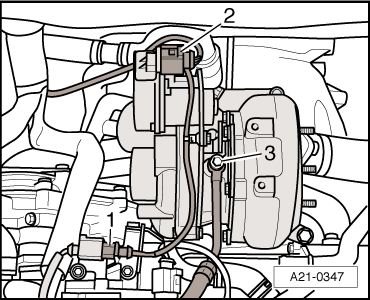

Fig 1: Disconnect The Connectors -1 And 2-
GWWA21-0347Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the oil supply line banjo bolt -3-.

-- Disconnect the connector -4-.

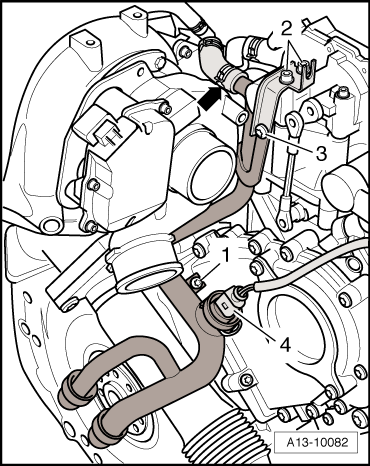

Fig 2: Identifying Bolts -2 & 3- And Bracket
GWWA13-10082Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2 and 3- and the bracket.

-- Remove the bolt -1-.

-- Disconnect the rear coolant pipe from the coolant hose -arrow-.

-- Remove the turbocharger oil return line -item 26) OVERVIEW - TURBOCHARGER .

-- Remove the nuts and bolts -arrows- and the left connecting pipe.

Fig 3: Identifying Nuts And Bolts -Arrows-
GWWA26-10034Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts and nuts -1 through 4- and the right connecting pipe.

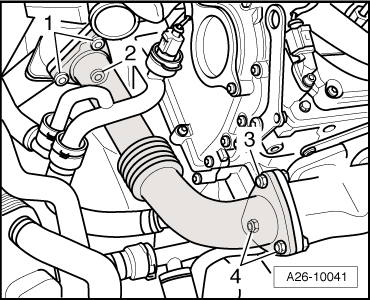

Fig 4: Identifying Bolts And Nuts -1 Through 4-
GWWA26-10041Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- and the turbocharger.

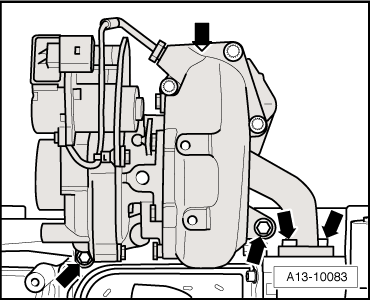

Fig 5: Remove The Bolts -Arrows- And The Turbocharger.
GWWA13-10083Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -arrows- and the vacuum pump.

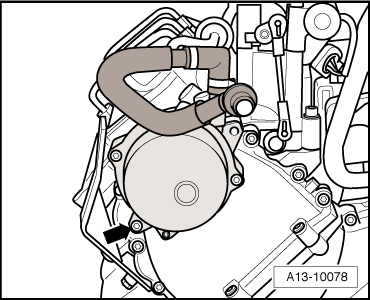

Fig 6: Identifying The Bolt -Arrow- And Vacuum Pump
GWWA13-10078Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

The vacuum pump installed on cylinder bank 2 (left) on a vehicle with engine code CASA and CASD is shown in the illustration.

If the vehicle has engine code CATA, then the vacuum pump is installed on cylinder bank 1 (right).

Vehicles with Engine Code CATA

-- Remove the exhaust gas recirculation auxiliary cooler. Refer to EXHAUST GAS RECIRCULATION SYSTEM AUXILIARY COOLER, REMOVING AND INSTALLING .

All Engine Codes

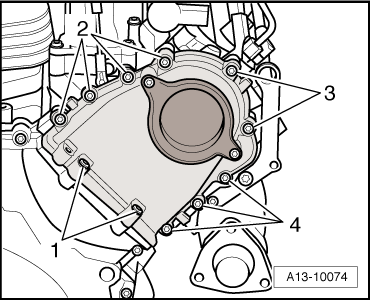

Fig 7: Bolt Tightening Sequence
GWWA13-10074Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1 to 4- and the right timing chain guard.

-- Remove the bolts -1 to 4- and the left timing chain guard.

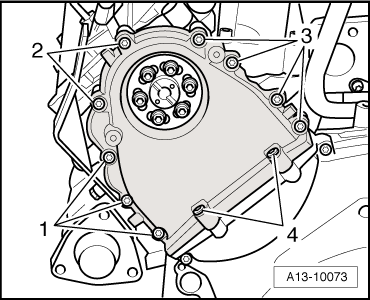

Fig 8: Bolt Tightening Sequence
GWWA13-10073Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1 to 9- and the timing chain guard lower section.

-- Press sealing ring for crankshaft at rear out of cover.

Fig 9: Identifying Lower Timing Chain Cover Bolt Tightening Sequence and Specification
GWWA13-10000Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
