Crankshaft Seal, Timing Chain Side, Replacing: Procedure

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Engine or transmission removed.

-- Remove drive plate. Refer to DRIVE PLATE, REMOVING AND INSTALLING .

-- Pry out the seal using the Puller - Crankshaft/Power Steering Seal:T20143/2 .

Fig 1: Prying Out Crankshaft Seal Ring Using Extractor Lever T20143/2

GWWA13-0624

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Make an 8 mm hole -arrow 2- in the Seal Installer - Crankshaft:T10122/2 for the alignment sleeve.

Fig 2: Drill An 8 Mm Hole -Arrow 2- In Guide Sleeve T10122/2 For Alignment Sleeve

GWWA13-0760

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Use the hole -arrow 1- in the washer as a template when drilling.

-- Clean the running and sealing surfaces.

Fig 3: Identifying Seal, Sleeve T10122/1 And Assembly Tool T10122/2

GWWN13-0782

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position Seal Installer - Crankshaft:T10122/1 on Seal Installer - Crankshaft:T10122/2 and slide seal -A- onto pull sleeve.

-- Remove the guide sleeve.

-- Position the pull sleeve with the seal on the crankshaft.

Fig 4: Identifying Pull Sleeve T10122/2 With Sealing Ring On Crankshaft

GWWA13-0625

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press in sealing ring all around evenly and flush using Seal Installer - Crankshaft:T10122/3 .

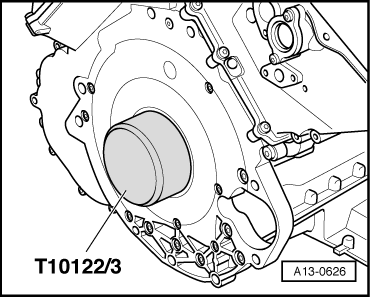

Fig 5: Pressing Crankshaft Seal Ring Onto Crankshaft Till Fully Seated

GWWA13-0626

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install drive plate. Refer to DRIVE PLATE, REMOVING AND INSTALLING .
