Crankshaft Seal, Belt Pulley Side, Replacing: Procedure

-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Remove the vibration damper.

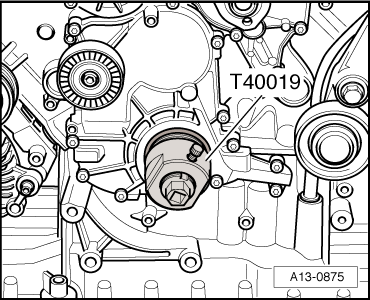

-- Place inner part of Puller - Crankshaft Seal:T40019  flush with outer part and secure using knurled-head screw.

Fig 1: Identifying Inner Part Of Oil Seal Extractor T40019, Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lubricate the threaded head on the camshaft seal puller position it and install it as far as possible into the seal using force.

-- Loosen knurled thumb screw and turn inner portion against crankshaft until the seal is pulled out.

-- Secure the seal remover in a vise at the flat spots. Remove seal using pliers.

-- Clean the running and sealing surface.

-- Insert the Seal Installer - Crankshaft - Guide Sleeve 1:T40048/1  onto Pull Seal Installer - Crankshaft - Guide Sleeve 1:T40048/2  and slide seal -1- onto the pull sleeve.

Fig 2: Inserting Assembly Device T40048/1 Onto Pull Sleeve T40048/2 And Slide Seal Onto Pull Sleeve

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove assembly device.

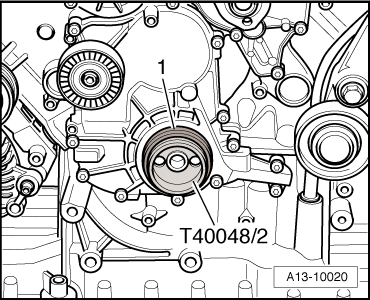

-- Place pull sleeve Seal Installer - Crankshaft - Pulling Sleeve 2:T40048/2  on crankshaft and slide seal -1- into sealing surface on engine.

Fig 3: Place The Pull Sleeve T40048/2 On The Crankshaft And Slide The Seal -1- Into The Sealing Surface On The Engine.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the Seal Installer - Crankshaft Seal Adapter:T40048/4  (installation depth: 5 mm) on the crankshaft with M8 x 55 mm bolts.

Fig 4: Position The Assembly Adapter T40048/4 On The Crankshaft With 2 M8 x 55 mm Bolts -Arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bolts by hand.

-- Tighten bolts each ¹ /₂ rotation by alternating sides to press in seal until it reaches stop.

-- Install the vibration damper.

-- Install the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .
