Balance Shaft, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the engine oil.

-- Remove the engine. Refer to ENGINE, REMOVING .

-- Separate engine/transmission unit. Refer to REMOVING ENGINE FROM Scissor Lift Table .

-- Secure engine to assembly stand. Refer to ENGINE, SECURING ON ASSEMBLY STAND .

-- Remove the drive plate. Refer to DRIVE PLATE, REMOVING AND INSTALLING .

-- Remove the shim behind it.

-- Remove covers for timing chains. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- Remove front sealing flange. Refer to FRONT SEALING FLANGE, REMOVING AND INSTALLING .

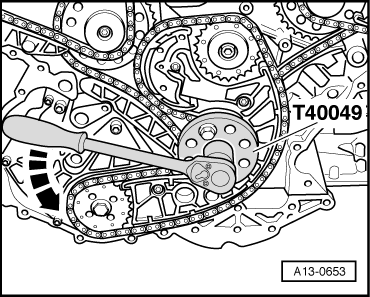

-- Install the Crankshaft Key:T40049 at the rear of the crankshaft with two used bolts from the drive plate.

Fig 1: Rotating Crankshaft To TDC Ignition Timing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lay a cloth under the oil pan upper section to collect any draining engine oil.

Fig 2: Identifying Locking Bolt Of Upper Part Of Oil Pan

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove drain plug.

WARNING:

Do not turn the crankshaft while touching the TDC opening with a finger or injury could result.

-- Install the Crankshaft Holder:3242 in the hole (20 Nm). Rotate the crankshaft -1- back and forth slightly if necessary to center the key completely.

Fig 3: Identifying Crankshaft Holder 3242

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the balance shaft on the front of the engine with the Diesel Injection Pump Locking Pin:3359 .

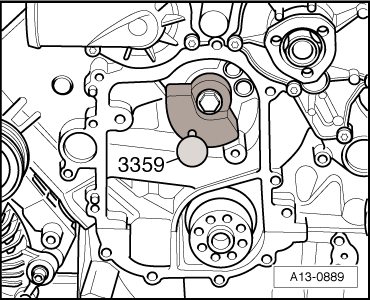

Fig 4: Secure The Balance Shaft Using Diesel Injection Pump Locking Pin 3359.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt and the balance weight from the balance shaft.

-- Secure the balance shaft on the rear of the engine with the Diesel Injection Pump Locking Pin:3359 .

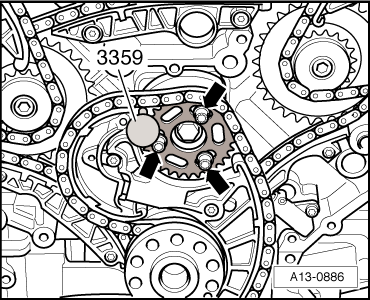

Fig 5: Secure The Balance Shaft At The Rear Of The Engine Using Diesel Injection Pump Locking Pin 3359.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- and the chain sprocket from the balance weight.

-- Remove the bolt -arrow- and the balance weight from the balance shaft.

Fig 6: Identifying Rear Balance Shaft -Arrow- And Diesel Injection Pump Locking Pin 3359

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

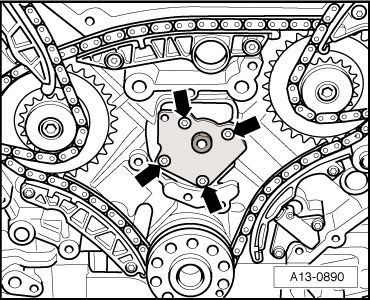

-- Remove the bolts -arrows- and remove the balance shaft bearing end bracket.

-- Remove the balance shaft from the cylinder block.

Fig 7: Identifying Bolts -Arrows- And Balance Shaft Bearing End Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
