Overview - Reducing Agent Delivery Line
WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

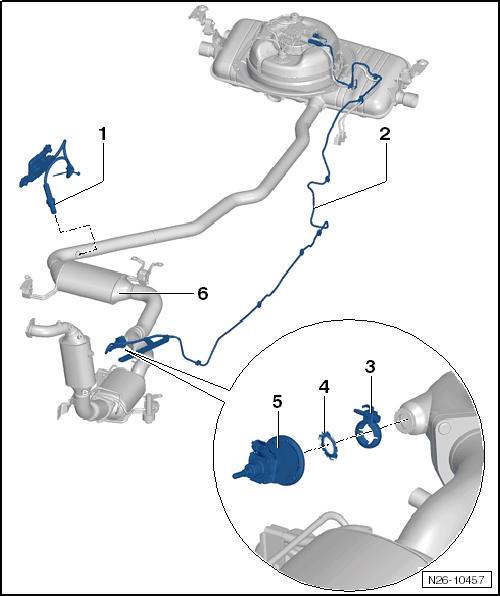

- NOx Sensor 2 -G687-
- With the NOx Sensor Control Module 2 -J881-
- To remove and install, remove the right underbody trim panel
- Reducing Agent Delivery Line
- Removing and installing. Refer to REDUCING AGENT DELIVERY LINE, REMOVING AND INSTALLING .
- Clamp
- 5 Nm
- Replace
- Seal
- Replace
- Reducing Agent Injector -N474-
- Removing and installing. Refer to Reducing Agent Injector -N474-, REMOVING AND INSTALLING .
- Reduction Catalytic Converter
