Left Intermediate Pipe, Removing And Installing: Removing

WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the pre-catalytic converter. Refer to OVERVIEW - FRONT EXHAUST PIPE WITH CATALYTIC CONVERTER, REDUCTION CATALYTIC CONVERTER AND PARTICULATE FILTER .

-- Remove the exhaust gas recirculation auxiliary cooler. Refer to EXHAUST GAS RECIRCULATION SYSTEM AUXILIARY COOLER, REMOVING AND INSTALLING .

Continuation for All Vehicles

-- Remove the connector -arrow- for the Engine Speed Sensor -G28- from the bracket and disconnect it.

Fig 1: Identifying Connector -Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -arrows- and the connector bracket from the left engine support.

Fig 2: Identifying Bolts -Arrows- And Connector Bracket From Left Engine Mount Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

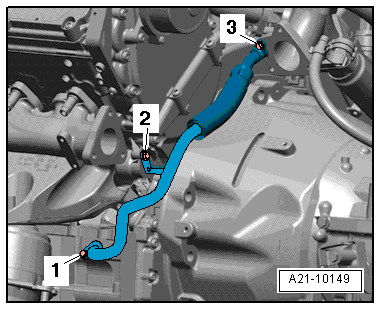

-- Remove the bolts -1 through 3- and the oil return line.

Fig 3: Identifying Bolts -1 Through 3- And Oil Return Line

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The engine and connecting pipe are removed in the illustration.

-- Remove the connecting pipe -arrows-.

Fig 4: Identifying Nuts And Bolts -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
