Left Exhaust Manifold, Removing And Installing: Removing

WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove air guide hose -arrows-.

Fig 1: Charge Air Hose Clamps -Arrows- And Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Place a cloth under separating point to catch escaping hydraulic fluid.

Fig 2: Identifying Hydraulic Hose, Hydraulic Pressure Line & Hose Clamps 3094

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clamp off the power steering pump hydraulic hose with a Hose Clamps - Up To 25mm: 3094 .

-- Remove the hydraulic hose -1- from the power steering pump.

-- Remove the banjo bolt -2- and lay the pressure line aside.

-- Remove the left intermediate pipe. Refer to LEFT INTERMEDIATE PIPE, REMOVING AND INSTALLING .

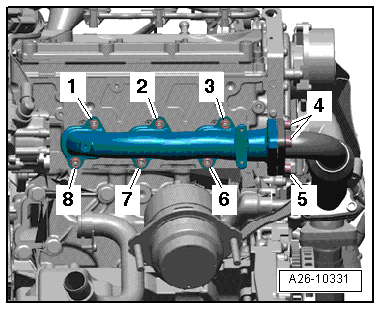

-- Remove the bolts -1 through 8- and the exhaust manifold.

Fig 3: Clamp Off The Power Steering Pump Hydraulic Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
