Exhaust Gas Temperature Sensor 2 -G448-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the connector -5- from the bracket and disconnect it.

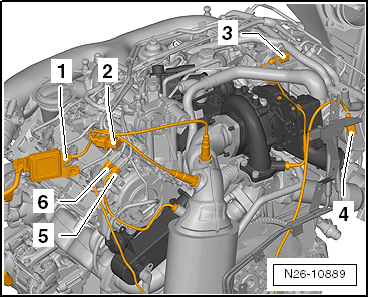

Fig 1: Installed Location for the Exhaust Cleaning System Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Free up the wiring guide for the Exhaust Gas Temperature Sensor 2 -G448-.

-- Remove the Exhaust Gas Temperature Sensor 2 -G448- -3-.

Fig 2: Identifying Installation Location Inside Exhaust System Tract

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
