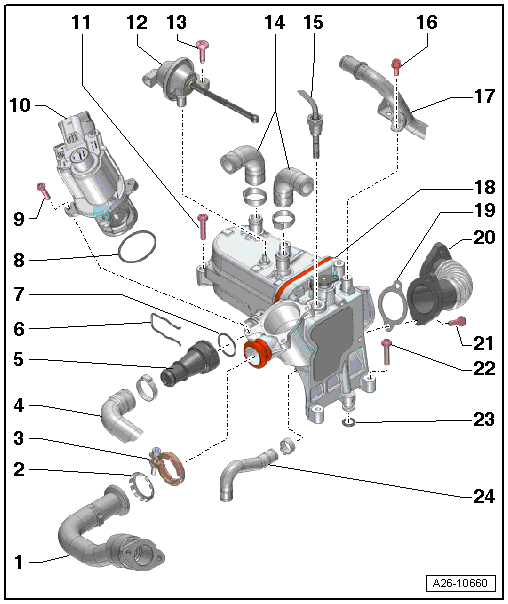

Overview - Exhaust Gas RECIRCULATION, Casa, CASD
WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Connecting Pipe for Exhaust Gas Recirculation
- Sealing Washer
- Replace
- Clamp
- 9 Nm
- Installation position: as illustrated
- Coolant Hose
- Connection with Exhaust Gas Recirculation Coolant Thermostat
- Clip
- O-Ring
- Replace
- O-Ring
- Replace
- Bolt
- 9 Nm
- EGR Motor -V338-
- With EGR Potentiometer -G212-
- Removing and installing. Refer to EGR Motor -V338-, REMOVING AND INSTALLING, CASA, CASD .
- Bolt
- 9 Nm
- EGR Change-Over Vacuum Diaphragm
- Bolt
- 9 Nm
- Coolant Hoses
- EGR Temperature Sensor -G98-
- Removing and installing. Refer to EGR Temperature Sensor -G98-, REMOVING AND INSTALLING, CASA, CASD .
- Bolt
- 9 Nm
- Crankcase Ventilation Pipe
- EGR Cooler
- With bypass valve for the exhaust gas recirculation cooler
- Removing and installing. Refer to EGR COOLER, REMOVING AND INSTALLING, CASA, CASD .
- Seal
- Replace
- Connecting Pipe for Exhaust Gas Recirculation
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- O-Ring
- Replace
- Coolant Hose
